The EM algorithm

The bivariate normal example in Chapter 1 illustrates the two operations that define EM. At iteration \(j\), use the current parameter \(\theta^{(j)}\) to determine the conditional distribution of the missing values, and take the conditional expectation of the complete-data log likelihood:

The resulting function retains the candidate argument \(\theta\). The M step varies that argument while holding the conditional distribution from the E step fixed:

Thus one distribution supplies the averaging and one optimization supplies the update. Keeping those two roles separate is the key to deriving an EM algorithm correctly.

It is often convenient to derive the complete-data score before calculating the E step. Write \(\dot l(D;\theta)=\partial l(D;\theta)/\partial\theta\). When differentiation and conditional expectation can be interchanged,

an interior M-step solution satisfies the expected-score equation

The score omits terms that do not depend on the candidate parameter, so its conditional expectation can be simpler to calculate than that of the full log likelihood. This simplification does not change the optimization requirement: a score root must still be checked to ensure that it gives the intended maximum.

The idea of computing \(E\{\dot l_n(D;\theta)\mid D_{\mathrm{obs}};\theta^{(j)}\}\) is to replace the unobserved terms in the full-data score function with the best estimates possible given the observed data and the current “guess” of the true parameter. When the data consist of \(n\) independent observations, the conditional score function is

where \(\dot l(Y;\theta)\) is the score function for a single observation \(Y\). When the missing mechanism is MAR, this previous display is

Under the ignorability conditions for MAR, the conditional distribution used in the E step comes from the data model alone; the response-mechanism factor drops out. The construction also applies to observations more general than a subvector of \(Y\). Any recorded quantity of the form

with a noninvertible map \(M\) contains partial information about the full observation. Censoring, grouping, and latent-class observations all fit this description. The next example makes this coarsening explicit: an observed blood type can be compatible with more than one underlying genotype.

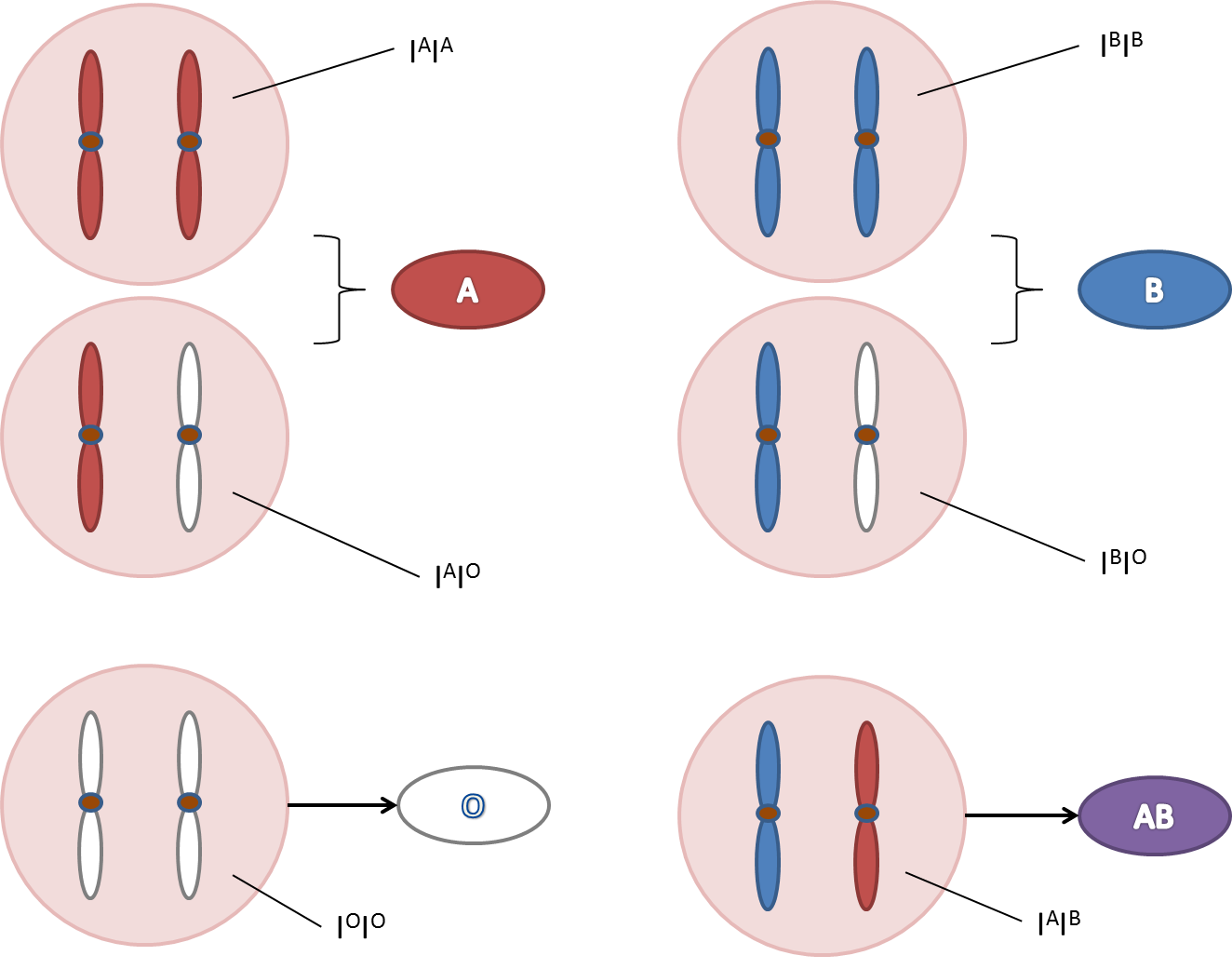

But there are 6 genotypes, \(AA, AO, BB, BO, AB, OO\). \(AA\) and \(AO\) lead to blood type \(A\); \(BB\) and \(BO\) to blood type \(B\); \(AB\) and \(OO\) correspond to blood types \(AB\) and \(O\), respectively. Under the assumption of infinite population size and random mating, the occurrences of the alleles in each person can be considered independent (Hardy-Weinberg Law). So, if we denote the population frequency of alleles \(A, B\), and \(O\), as \(p_A, p_B\), and \(p_O\), respectively, then

Suppose we have a random sample of \(n\) subjects, among which \(n_A, n_B, n_{AB},\) and \(n_O\) are observed to have blood types \(A, B, AB\), and \(O\), respectively. We want to estimate the allele frequencies \(\theta:=(p_A, p_B, p_O)\). Suppose, instead of the phenotype data \(D_{\mathrm{obs}}:=(n_A, n_B, n_{AB},n_O)\), we had observed the counts for each genotype \(D:=(N_{AA},N_{AO},N_{BB},N_{BO},N_{AB}, N_{OO})\), where

By the Hardy-Weinberg assumption of independent mating, the genotype data \(D\) is equivalent to a random sample of \(2n\) alleles, with observed counts \(2N_{AA}+N_{AO}+N_{AB}\), \(2N_{BB}+N_{BO}+N_{AB}\), and \(2N_{OO}+N_{AO}+N_{BO}\). for alleles \(A\), \(B\), and \(O\), respectively. Hence, the MLEs for \(\theta\) would be

However, since we do not observe the \(N\)s, we might want to replace the numbers with their corresponding estimates based on the observed phenotype data. For example, the population fraction of genotype \(AA\) within the population of blood type \(A\) is

So we should replace \(N_{AA}\) with

Similarly for the other \(N\)s.

The problem is that the “estimated” genotype frequencies contain the unknown parameters. This suggests using an iterative scheme, where at the \((j+1)\)th iteration, one computes

The expected genotype counts in the updates are obtained by allocating each ambiguous blood-type count among its compatible genotypes. For blood type A, the allocations are

and the corresponding allocations for blood type B are

Each pair sums to its observed phenotype count. More compactly, the vector of reconstructed counts is the conditional expectation

This identifies the reconstruction as the E step. To complete the argument, the M step must use these conditional means in precisely the places where the complete-data likelihood depends on the genotype counts.

To complete the score argument, collect the allele counts as \(C_A=2N_{AA}+N_{AO}+N_{AB}\), \(C_B=2N_{BB}+N_{BO}+N_{AB}\), and \(C_O=2N_{OO}+N_{AO}+N_{BO}\). Up to a parameter-free term,

The score with respect to \((p_A,p_B)\) is \((C_A/p_A-C_O/p_O,\ C_B/p_B-C_O/p_O)^{\mathrm{T}}\), which is linear in the complete genotype counts. Replacing the counts by their conditional expectations therefore gives the exact E step. Since \(C_A+C_B+C_O=2n\), maximizing the conditional log likelihood yields the updates already displayed. Here \(n_{OO}=n_O\), because blood type O determines genotype OO.

The missing data framework here applies to latent variable models, and so does the EM algorithm. Here we give a simple example. Suppose we observe a continuous outcome \(X\), whose distribution is multi-modal. A popular model for multi-modal distribution is the normal mixture model. Suppose there is a latent categorical variable \(G=1,\cdots, K\), where \(K\) is fixed, indicating the underlying classes of normal distribution, and

where \(\theta=\{(p_k,\mu_k,\sigma_k^2)\), \(k=1,\cdots, K\}\) consists of unknown parameters.

The (marginal) density of \(X\) is

where \(f(X;\mu_k,\sigma_k^2)=\sigma_k^{-1}\phi\left(\frac{X-\mu_k}{\sigma_k}\right)\). Given a random sample \(X_1, \cdots, X_n\), it is hard to find the MLE of \(\theta\) directly based on \(\sum_{i=1}^n\log p_X(X_i;\theta)\). So we try the EM algorithm with imagined full data \((X,G)\), whose density is

So the log-likelihood of \(\{(X_i,G_i):i=1,\cdots,n\}\) is

Hence, we only need to compute \(E[I(G=k)\mid X;\theta]\) at the E step.

So, at the \((j+1)\)th iteration,

where \(w_{ki}^{(j)}=E[I(G_i=k)\mid X_i;\theta^{(j)}]\). For the M step, after straightforward derivation that completely parallels that of MLEs for multinomial and Gaussian data, we have

For the E step, we compute

This wraps up the EM algorithm for normal mixture models.

Proof. The function \(h(x)=-\log x\) is strictly convex on \((0,\infty)\). We apply Proposition 2.1 to the random variable \(g/f\):

Denote \(L(D;\theta)\) and \(L(D_{\mathrm{obs}};\theta)\) as the full data likelihood and the observed data likelihood, respectively. We want to show that each EM step increase the log-likelihood of the observed data, i.e.,

Recall that

Consequently,

Note that

is the conditional density of \(D\) given \(D_{\mathrm{obs}}\) under \(\theta\). By Proposition 2.2,

Since inequality (\(\ref{eq:qiq}\)) holds for all \(\theta\), take \(\theta=\theta^{(j+1)}\) and we have

Because by definition \(Q(\theta^{(j+1)}|\theta^{(j)})\geq Q(\theta^{(j)}|\theta^{(j)})\), we have the result

More explicitly, let \(q_j(z)=p(z\mid D_{\mathrm{obs}};\theta^{(j)})\). Then

Thus merely increasing \(Q\) suffices to increase \(\ell_o\); an exact maximization is not necessary for a generalized EM step. A bounded increasing sequence of likelihood values converges, but convergence of parameter iterates needs further regularity and control of the parameter space. At a candidate solution, inspect the observed score, information matrix, boundary behavior, and sensitivity to starting values.

One initial criticism of the EM algorithm was that it does not automatically provide an estimate of the covariance matrix of the MLE, as do some other methods, such as Newton-Raphson type methods. We know from asymptotic likelihood theory, that when the sample size \(n\) is large

where \(\mathcal I(\theta)\) is the Fisher information. The Fisher information is the expectation of the observed information, which is the negative Hessian of the log-likelihood. Because the EM algorithm does not directly provide the correct information matrix at convergence, a variety of methods have been proposed for obtaining the asymptotic covariance matrix of the MLE.

Observe that the full data likelihood can be written as

Consequently,

Differentiating both sides of the equation twice with respect to \(\theta\) yields

where \(I(D;\theta)\) is the full-data information, and

represents missing-data information.

So, the above equation can be interpreted as

Taking conditional expectation of both sides given \(D_{\mathrm{obs}}\), we have

The first term on the right hand side of (\(\ref{eq:info}\)) can be estimated by

Louis (1982) showed that the missing information, represented by the negative of the second term on the right hand side of (\(\ref{eq:info}\)), can be estimated by

where \(\dot l_n(D_{\mathrm{obs}};\theta)\) is the observed-data score function. At the MLE \(\widehat\theta\), \(\dot l_n(D_{\mathrm{obs}};\widehat\theta)=0\). Therefore, the observed-data information can be estimated by

where

So the first term of \(I(D_{\mathrm{obs}};\widehat\theta)\) can be computed based on the \(Q\) function. The second term is not a byproduct of the EM algorithm. In the iid case,

Consequently,

where

Note that

since

. In conclusion,

At any parameter value for which differentiation under the integral is justified, write \(S_c=\partial\ell_c/\partial\theta\) and \(I_c=-\partial^2\ell_c/\partial\theta\partial\theta^{\mathrm{T}}\). Then

This form avoids a common implementation error: the conditional second moment of the score and the outer product of its conditional mean are different quantities. For independent subjects the conditional variances add. At an interior MLE the total observed score is zero, but individual observed scores generally are not. The final sum of individual outer products in the Louis formula must therefore be retained.

To put this example into iid framework, let \(Y\in\{AA,AO,BB,BO,AB,OO\}\) be the full genotype data for one individual. The full data log-likelihood for \(\theta=(p_A, p_B)^{\mathrm{T}}\) is

where \(f_{AA}(\theta)=\log p_A^2, f_{AO}(\theta)=\log 2p_A(1-p_A-p_B)\), \(f_{BB}(\theta)=\log p_B^2\), \(f_{BO}=\log 2p_B(1-p_A-p_B)\), \(f_{AB}(\theta)=\log 2p_Ap_B\), and \(f_{OO}(\theta)=\log (1-p_A-p_B)^2\).

Consequently,

Note that the square of \(\dot l(Y;\theta)\) has a simple form

Let \(Y_{\mathrm{obs}}\in\{A,B,AB,O\}\) denote the observed blood type data. In the E step, we have calculated the conditional probabilities of \(Y\) given \(Y_{\mathrm{obs}}\). In particular, define \(w_A(\theta)=\frac{p_A^2}{p_A^2+2p_Ap_O},\) and \(w_B(\theta)=\frac{p_B^2}{p_B^2+2p_Bp_O}\). Then, we have

Consequently,

Similarly,

And,

The variance of \(\widehat\theta\) can be computed using the Louis formula (\(\ref{eq:louis}\)). See A2.1 for details.

For completeness, the derivatives referred to in the lecture can be computed from six coefficient vectors. Let \(v_g=(a_g,b_g,o_g)\) be \((2,0,0)\) for AA, \((1,0,1)\) for AO, \((0,2,0)\) for BB, \((0,1,1)\) for BO, \((1,1,0)\) for AB, and \((0,0,2)\) for OO. With \(p_O=1-p_A-p_B\),

Substitution into the conditional sums gives a \(2\times2\) observed information matrix. Invert it for the covariance of \((\widehat p_A,\widehat p_B)\). For the third frequency, the delta method gives

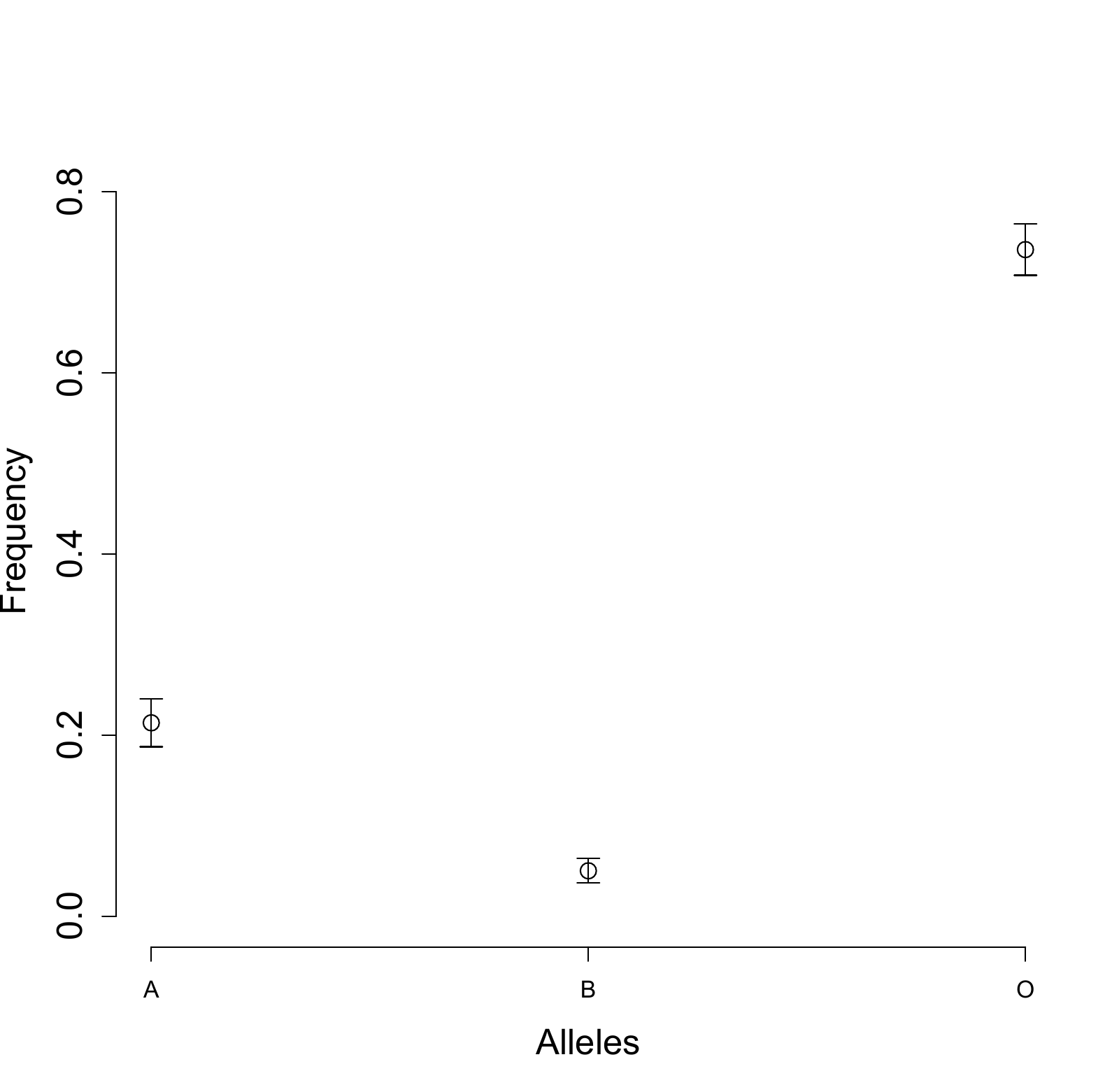

. The same calculation therefore provides uncertainty estimates for all three allele frequencies.

To make our framework more general so as to allow for coarsening of data (Example 1) as well as actually missing values, we introduce, for the \(i\)th subject, the (random) \(M_i\) representing the “coarsening” pattern, so that the coarsened data is

For example, if full data \(Y_i=(Y_{i1},Y_{i2})^{\mathrm{T}}\), and the observed data are \((R_i,Y_{i1},R_iY_{i2})\), then

where \(f_1(y)=y\) and \(f_0(y)=y_1\) for \(y=(y_1,y_2)\). So there are two possible coarsening patterns \(f_1\) and \(f_0\), which represent no coarsening at all and extracting the first element, respectively.

In Example 1, \(M_i\) is the (fixed) function

The representation of observed data as \(\{M_i, Y_{i,\mathrm{obs}}:=M_i(Y_i)\}\) also allows each subject to have a different coarsening pattern.

Under this framework, suppose there are \(K\) levels of coarsening pattern, i.e., \(M\in\{m_1,\cdots, m_K\}\). Denote the coarsening mechanism by

The familiar classifications of missing data based on missingness mechanism can be easily extend to the coarsened data as follows: MCAR: \(M\perp\!\!\!\perp Y\), i.e., the \(\pi_k(y)\) are constants

MAR: \(M\perp\!\!\!\perp Y\mid M(Y)\), i.e., \(\pi_k(y)\) is only a function of \(m_k(y)\)

NMAR: \(M\) is not independent of \(Y\) even given \(M(Y)\), i.e., at least one \(\pi_k(y)\) depends on elements of \(y\) other than \(m_k(y)\).

The exponential family of statistical models encompass the most commonly used models such as the normal, binomial/multinomial, Poission, and etc.. A model belongs to the exponential family if its desnity can be parameterized as

where \(\theta\) is called the canonical parameter, \(t(\cdot)\) and \(b(\cdot)\) are functions of \(Y\), and \(a(\theta)\) is the normalizing constant for density under \(\theta\). So, the score function is

Based on an iid sample of \(n\) subjects, the score function is

So, inference of \(\theta\) is solely based on \(\sum_i^nt(Y_i)\), which is hence termed the sufficient statistic. With full data, the MLE solves

using possibly the Newton-Raphson algorithm. With coarsened data \(D_{\mathrm{obs}}=\{(M_i,M_i(Y_i))\), \(i=1,\cdots,n\}\), the M step for the EM algorithm closely mimics the MLE for full data.

Observe that the full data score function is linear in the sufficient statistic, so, at the \((j+1)\)th iteration, the M step solves

where in general

and under MAR

We can also derive a general expression for the variance estimator of the MLE \(\widehat\theta\) with coarsened data using Louis formula.

Assuming MAR, denote

Using the Louis formula (\(\ref{eq:louis}\)), an estimator for the observed data information is

In fact, it is easily seen that the missing information for the \(i\)th subject

So the missing information is due to the extra variability of the sufficient statistic \(T(Y)\) unaccounted for by \(M(Y)\). It may very well happen that the canonical parameter is not directly in the form of the parameter of interest. If the parameter of interest is \(\psi\) and the canonical parameter \(\theta\) can be expressed as \(\theta(\psi)\). Then the information of \(\psi\) can be estimated by

For vector sufficient statistics, expand outer products with both cross terms: \((t-a)(t-a)^{\mathrm{T}}=tt^{\mathrm{T}}-ta^{\mathrm{T}}-at^{\mathrm{T}}+aa^{\mathrm{T}}\). The dimensionally explicit result is

For a smooth one-to-one reparameterization \(\theta=\theta(\psi)\), the Jacobian transformation of observed information shown above holds at a stationary point; away from it, second derivatives of the transformation produce additional score terms.

Consider the multinomial data \(Y=k\) with probability \(p_k\), \(k=1,\cdots, K\), where \(\sum_{k=1}^K p_k=1\). The log-likelihood of \(Y\) is

where \(\theta=(\theta_1,\cdots,\theta_{K-1})^{\mathrm{T}}\), \(\theta_k=\log(p_k/p_K)\), and \(T=(I(Y=1),\cdots,I(Y={K-1}))^{\mathrm{T}}\).

To get back to \(p:=(p_1,\cdots, p_{K-1})^{\mathrm{T}}\) from \(\theta\), note that

and \(p_K=\left(1+\sum_{k=1}^{K-1}e^{\theta_{k}}\right)^{-1}\). In this case,

and it is easily shown that

where \(e^{\theta}=(e^{\theta_1},\cdots,e^{\theta_{K-1}})\).

Hence, the full data score function is

So, the M step for the \((j+1)\)th iteration of EM algorithm with incomplete data is as follows:

where

The E step (computation of the \(\widehat T_i^{(j)}\)), of course, depends on the specific coarsening patterns and mechanism.

Under the current formulation, there are two coarsening patterns, one is no grouping, the other grouping by the rule \(m(\cdot)\). So we use a binary random variable \(R\in\{0,1\}\) define the random coarsening pattern

where \(m_0(y)=y\) is the identity function. Thus, the \(k\)th component of \(\widehat T_i^{(j)}\) is

where \(\mathcal C_l=m^{-1}(l), l=1,\cdots, L\).

Now, define

as the count in the \(k\)th level among the ungrouped, and

as the count in the \(l\)th group among the grouped. Then, the M step can be expressed as

The Louis information calculation follows below.

The information calculation for the grouped multinomial example is also explicit. Use \(T=(I(Y=1),\ldots,I(Y=K-1))^{\mathrm{T}}\) and let \(q_i=E(T_i\mid O_i)\) under the fitted probabilities. For an ungrouped record the conditional covariance is zero. For a grouped record,

where a category outside the compatible group receives zero probability. The full-data information in canonical coordinates is \(\operatorname{diag}(p)-pp^{\mathrm{T}}\) per subject. Hence

If all records merge the same categories, the resulting information may be singular, reflecting the identification limitation already discussed.

Consider the usual linear regression model:

where \(\beta=(\beta_1,\beta_2^{\mathrm{T}})^{\mathrm{T}}\) are regression parameters, \(Z=(Z_1,\cdots, Z_p)^{\mathrm{T}}\) are the covariates, and \(\epsilon\sim N(0,\sigma^2)\) is the random error independent of \(Z\). Suppose the full data are \((Y_i, Z_i), i=1,\cdots, n\). In the observed data, some components of the \(Z_i\) are missing at random, so we observe \((M_i, M_i(Z_i))\) The full data likelihood can be expressed as

where \(p(Y\mid Z;\beta,\sigma^2)\) is the conditional density of \(Y\) given \(Z\) and \(\eta(Z)\) is the density of \(Z\).

Because of factorization, inference on \((\beta,\sigma^2)\) can be based on

regardless of \(\eta\), which can thus be left totally nonparametric. However, the density of observed data with missing covariates is (proportional to)

So \(\eta\) gets entangled with the parameters of interest. In order to do MLE, we have to build a model for \(Z\). We discuss two scenarios: (1) \(Z\) is multivariate normal; (2) \(Z\) is categorical (i.e., consists of binary indicators).

Let \(Z\sim N(\mu,\Sigma)\). Clearly, \((Y, Z^{\mathrm{T}})^{\mathrm{T}}\) is multivariate normal:

So this time the conditional expectation, conditional variance and covariance of any components of \(Z\) given \(Y\) and other elements of \(Z\) have closed-form expressions (cf. A1.2.3). We obtain the MLE for \(\beta\) and \(\sigma^2\) based on the incomplete data \((Y_i, M_i(Z_i)), i=1,\cdots, n\).

For simplicity of notation, re-define \(Z\) to include the intercept, so \(Z=(Z_0, Z_1,\cdots, Z_p)^{\mathrm{T}}\), where \(Z_0=1\). The full data log-likelihood is

where \(\sigma_z^{l,k}\) is the \((l,k)\)th element of \(\Sigma^{-1}\).

At the \((j+1)\)th iteration, we compute

The conditional expectations of the square terms can be calculated by partitioning into (conditional) variance and bias.

Consequently,

where

Thus, the E step fills in the missing components of \(Z_i\) using conditional expectation and adds an additional term to account for the filling in.

Similarly,

where \(\widehat c_{ikl}^{(j)}\) is the \((k,l)\)th element of \(\widehat C_i^{(j)}\). In the M step, we can maximize \(Q_1\) and \(Q_2\) separately since the parameters \((\beta,\sigma^2)\) are distinct from \((\mu,\Sigma)\). The maximizations are similar to the full data cases.

Maximizing \(Q_1\) w.r.t. \((\beta,\sigma^2)\) leads to

Maximizing \(Q_2\) w.r.t. \((\mu,\Sigma)\) leads to

The intercept component \(Z_0=1\) is deterministic. Its conditional variance and covariance with other components are zero; the covariance model for the random covariates excludes this intercept. For any incomplete record, partition the joint normal vector into observed and missing coordinates. The usual normal conditioning formula supplies the conditional mean vector and covariance matrix. The update requires

Omitting \(\widehat C_i\) is deterministic mean imputation, not the EM likelihood calculation. In particular it changes the normal equations and generally understates residual uncertainty.

We then consider the linear regression model where the covariates are binary indicators. Let \(p(z\mid \alpha)\) denote the covariate distribution of \(Z\). For example, for the saturated model, \(Z\) can be viewed as multinomial with \(2^p\) categories. The full data log-likelihood is thus

Denote \(\mathcal Z=\{z_k: k=1,\cdots,m\}\) as the set of possible values of the binary vector \(Z\). Of course, \(m\leq 2^p\). Let \(\mathcal C_{i}\) denote the set of all possible \(z_k\)s that are “compatible” with the observed values \(M_i(Z_i)\) of the \(i\)th subject. That is

So, \(\mathcal C_{i}\) contains all possibilities for the full covariate vector \(Z_i\) given the observed part \(M_i(Z_i)\). At the \((j+1)\)th iteration, we compute

Note that because \(Z\) is categorical, the conditional expectations can be written as a weighted sum of all possible values of the expectands. Consequently,

where

In fact, the E-step for any regression model with missing categorical covariates can be written as a weighted sum of the full data log-likelihood (Ibrahim, 1990). The form of \(Q(\theta\mid \theta^{(j)})\) gives a weighted least squares problem for the M step. It is easy to obtain

and

The M step for \(\alpha\) solves the following weighted score function

where \(\dot l_\alpha(z;\alpha)=\frac{\partial}{\partial\alpha}\log p(z;\alpha)\). In the case of a saturated model for all \(2^p\) categories of \(Z\), there is a closed-form solution for the M step of \(\alpha\). Let \(\alpha_k=\operatorname{Pr}(Z=k)\). This gives

To find a variance estimator for the MLE, Ibrahim (1990) recommends the Louis formula. To simplify the derivatives, we make the transformation \(\tau=1/\sigma^2\). So \(\theta=(\beta^{\mathrm{T}},\tau,\alpha^{\mathrm{T}})^{\mathrm{T}}\). For a single observation of full data,

and

Using column-vector scores, the same derivatives have the particularly clear form

and the negative Hessian blocks are

The transpose in the mixed blocks makes the Hessian symmetric, as required. At the fitted parameter, average these quantities and their score outer products over the compatible rows, then apply Louis’s identity.

Computation of conditional expectations is facilitated by observing the fact that, for any function \(g(Y_i,Z_i;\widehat\theta)\),

where \(\widehat w_{ik}\) is the expression of \(w_{ik}^{(j)}\) with \(\theta^{(j)}\) replaced by \(\widehat\theta\). The information can thus be estimated by the Louis formula using (\(\ref{eq:louis}\)).

It also frequently occurs that the covariates are a mixed of continuous and categorical variables. Let \(Z\) be a vector of continuous variables and \(\widetilde Z\) be a vector of binary variables. The linear regression model is

When components of both \(Z\) and \(\widetilde Z\) are subject to missingness, we need to have a joint model for \((Z,\widetilde Z)\) in order to compute the MLE for \(\beta\) and \(\widetilde\beta\). In such cases, it is convenient to model the joint distribution of \((Z,\widetilde Z)\) by a normal mixture:

where \(Z\mid \widetilde Z=z_k\sim N(\mu_k,\Sigma_k)\).

Let \(C\) denote the categorical part and \(Z\) the continuous part, with \(Z\mid C=k\sim N(\mu_k,\Sigma_k)\) and \(P(C=k)=\alpha_k\). The E step has two nested calculations. First compute the posterior probability of each compatible category:

Within each category use normal conditioning to obtain \(m_{ik}=E(Z_i\mid O_i,C=k)\) and \(V_{ik}=\operatorname{Var}(Z_i\mid O_i,C=k)\). Every sufficient statistic is then averaged twice, for example

With \(N_k=\sum_iw_{ik}\), update \(\alpha_k=N_k/n\), \(\mu_k=N_k^{-1}\sum_iw_{ik}m_{ik}\), and

For the response regression, form the complete design vector containing both \(Z\) and the category indicators, compute its conditional first and second moments by the same averaging, and use the normal-regression updates above. This completes the exercise and shows how the continuous and discrete cases fit together.
